Source Navigation

Estimated reading time: 3 minutes

Encore RPG can also help you find and edit items in your Encore projects. Outlined below are some helpful short-cuts to quickly find a particular member or reference defined in Encore code using the language service.

Encore editor navigation commands that move the keyboard cursor interoperate with the Navigate Backward/Forward command stack, accessible via Ctrl+- (backwards) and Ctrl+Shift+- (forwards), or buttons on the IDE toolbar.

Quick Info

Sometimes you just need a hint about an item in the code. This IntelliSense® feature uses the “mouse hover” gesture (or Ctrl+K, Ctrl+I keyboard shortcut) to query the language service about the selected code reference. In the editor animation below, the user cannot remember the type of the class member Summaries, referenced on line 41. Simply hovering the cursor over the reference reveals it to be an array of type *String.

If the animation below has stopped, please refresh the page.

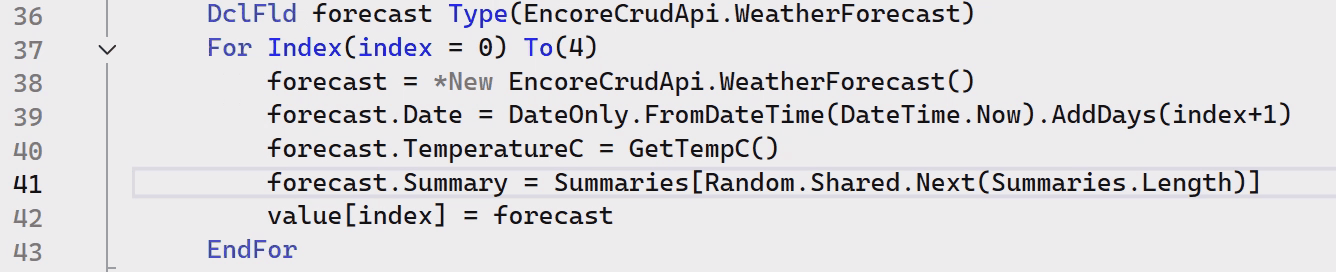

Discovering the type of `Summaries` with Quick Info

Font and color modifications are saved in the user’s Visual Studio settings, and are applied only to the current theme.

The Quick Info hover response can be enabled/disabled in Tools|Options via the “Show Quick Info on hover” option.

Each Encore editor window optionally includes a simple code navigation bar in the upper margin. This UI displays and locates all class and member identities known to Encore language service in the current file.

  • The left-side drop-down lists all outer classes, inner classes, interfaces, and data structures.
  • The right drop-down lists the members of the current definition selected in the left drop-down.
  • The selected item in the right drop-down list is the item nearest the current keyboard cursor position.
  • The selected item in the left drop-down list is the member nearest the current keyboard cursor position.

An icon indicating the kind of item is shown in each list entry. The member list shown below indicates that the WeatherForecast class consists of four properties.

Selecting an item in either list moves the keyboard cursor to the declaration for the item.

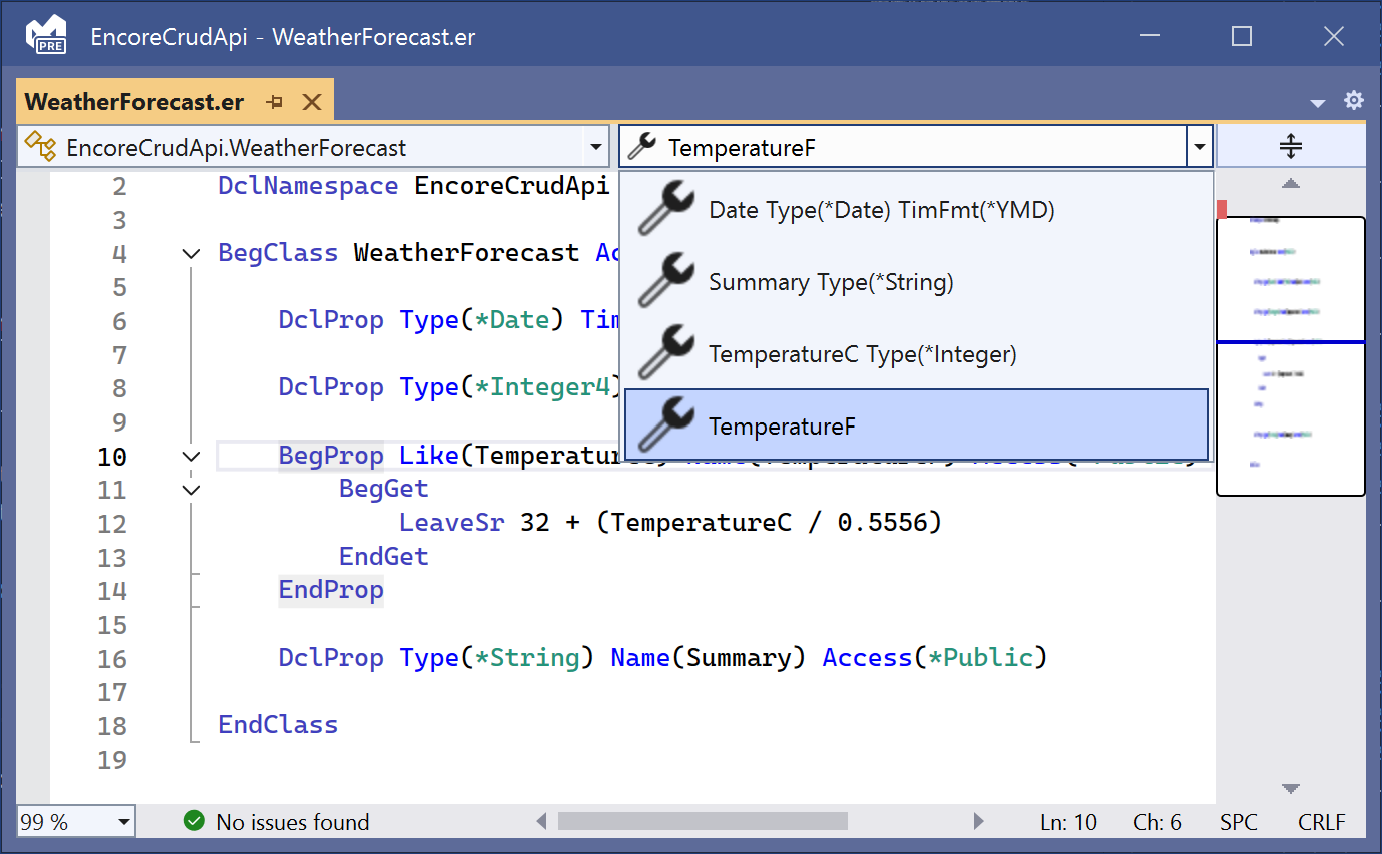

The properties of the current class are shown.

The code navigator UI can be enabled/disabled in Tools|Options, with the “Navigation bar” setting.

Go To Definition

If an item references a code entity in any loaded Encore project, the Go To Definition command is a handy shortcut to find its declaration in the IDE. When the keyboard cursor is on the item, the default shortcut for the command is F12, or it can be invoked in the editor’s context menu by right-clicking the item.

The command opens the definition’s file in the editor (if it is not already open), and positions the keyboard cursor on the declaration. This works for classes, interfaces, and members.

If the animation below has stopped, please refresh the page.

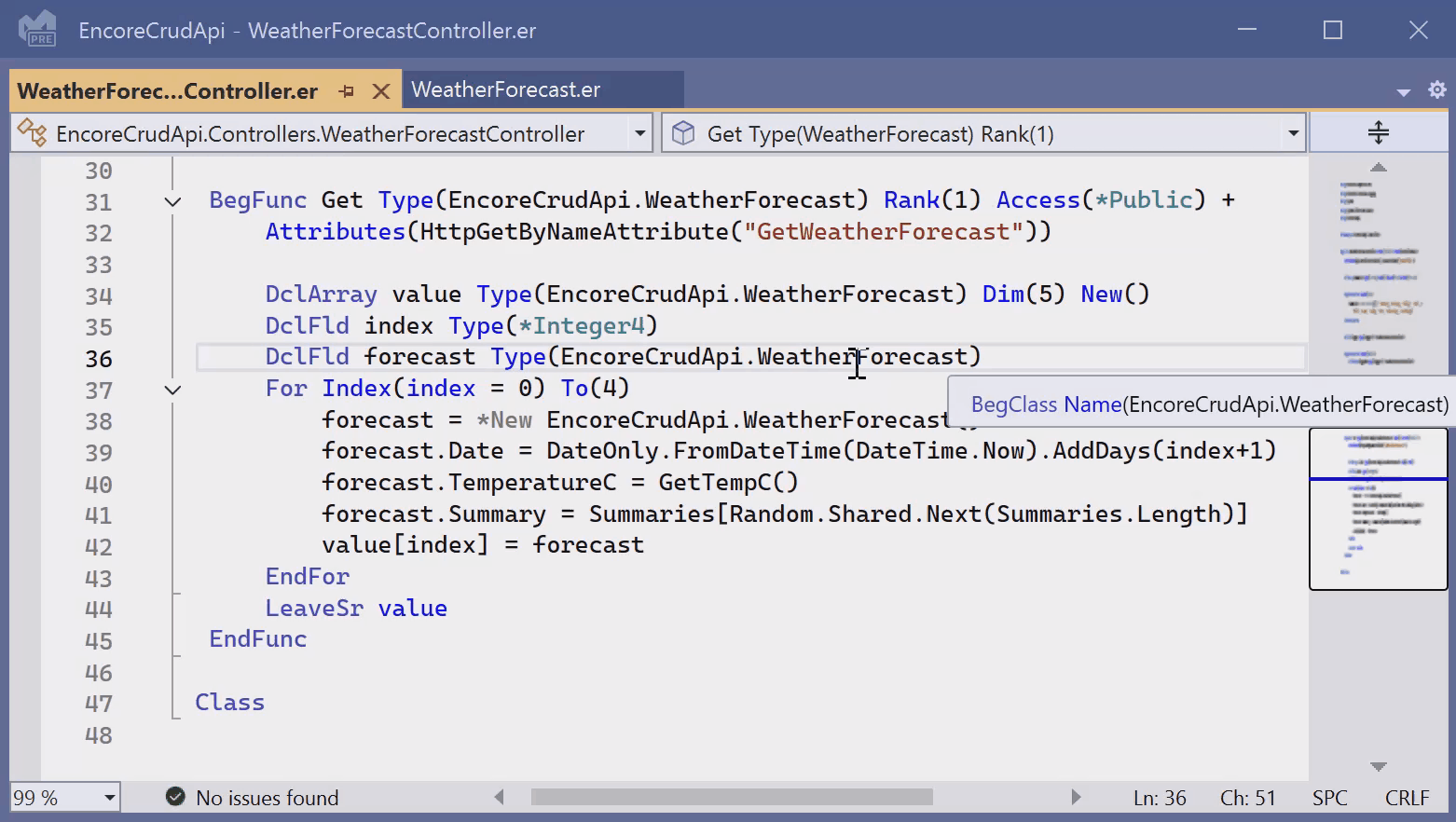

Using Go To Definition to edit an item's code definition.

Note: If the item’s definition is not found in any currently loaded Encore project, the command cannot be invoked, and will not appear in the context menu.

F1 Encore Opcode Help

Online help is available for most Encore opcodes and many built-in functions. You can access this information with the editor via F1 when the keyboard cursor is on the item to query help for.

Encore RPG support for F1 help is a work-in-progress. If you find discrepancies, please contact ASNA Support.

Additional Information

Language Concepts

Find out about the new Language Concepts when using Encore RPG.

Language Reference

Describes the Encore RPG programming language reference.

Getting Started with Visual Studio

Learn to code in Visual Studio

IntelliSense® is a registered trademark of Microsoft Corp.
